Interbike 2011 Bike Show and the E-Moto Monterrey Bike that I designed

The Las Vegas Interbike trade show happened on September 14-16 at the Sands Expo and Convention center. One of the (best) electric bikes shown there was the e-Moto Monterey electric bike that I co-designed in SolidWorks with a friend of mine. Although I wasn't able to go to the show I thought that I would write a blog post about the bike since I had a hand in creating it. Have a look at the pictures below of the Interbike show bike and the CAD model that I made to design the bike.

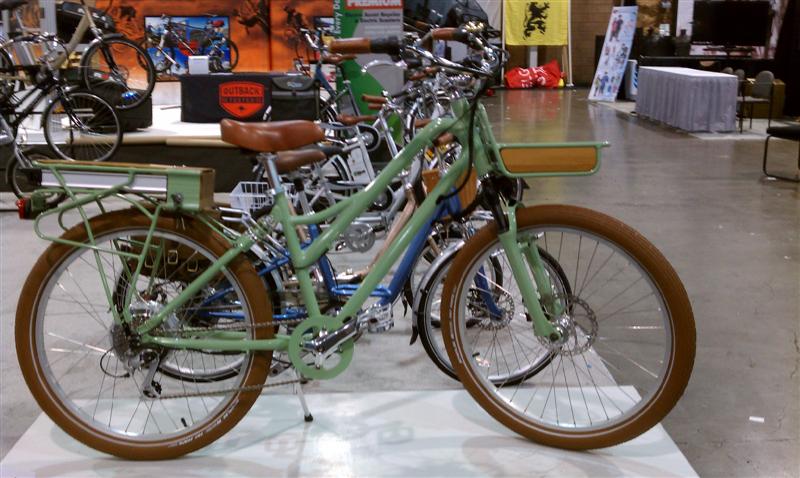

e-Moto Monterrey at the Interbike 2011 show

SolidWorks CAD model of the e-Moto Monterey bike
Details of the bike and all it's features are below. I did the entire design in SolidWorks 2009. A friend of mine who is familiar with the bike industry and trends was advising and critiquing along the way.

Here are the details of the e-Moto Monterey bike:

MOTOR: 500 watt, high torque output, next generation geared, rear wheel motor (great heavy load and hill climber)
BATTERY: (stock) 36V * 10.5Ah Samsung 3C (high discharge rate) battery pack/ (optional) 36v * 7Ah Samsung 3C (high discharge rate) battery pack
CHARGER: 3+ Amp rapid UL listed charger
CONTROLLER: 25 amp continuous/ 30 amp peak 9 mosfet controller
INPUT: Twist and go throttle or 3 mode "speed sensor" pedal assist
RANGE: 10.5Ah stock battery 18 miles, or optional 7Ah battery 12 miles = combined total 30 mile range
SPEED: 20mph (32kph) extreme high torque output!


The e-Moto Monetrey

DRIVETRAIN: Shimano Alivio 8 speed w/ twist grip shifter, Freewheel range 11-32T
CRANKS: Prowheel OUNCE 248AE, 48T, cold forged alloy cranks
BB: Sealed cartridge by VP components
BRAKES: Promax DSK-715 (tool-less adjust) disc brakes w/ oversize disc rotors
MISC. COMPONENTS: Promax brand where applicable
SUSPENSION: Dual suspension, using front SR Suntour Nex-410 fork w/ lock out thumb knob
FRAME: 6061 aluminum w/ rear suspension 18" frame size (mid step over height)
WHEELS: 26" Double wall rims w/ eyelets, stainless steel 13G spokes, and Kenda Kontact oversize 26" x 2.125" brown tires standard, PR Tubes w/ Slime
FENDERS: Zeppelin fenders w/ stainless steel hardware
RACKS: Front and rear racks standard topped with marine grade bamboo plywood (both racks prewired for batteries)
ESTIMATED WEIGHT: 52 lbs.
WARRANTY: Frame: 10 years, Battery: 1 year, Motor/ Controller/ Charger: 1 year, Standard Bike parts: 1 year -less tires, tubes, cables, chain, grips, racks, wood, and fabrics.

Here are a couple more screen shots of the CAD model:

SolidWorks CAD model of the e-Moto Monterey

SolidWorks CAD model of the e-Moto Monterey

e-Moto makes great electric vehicles. I don't work for them but I am familiar with their bikes and ride them all the time.

Email me at ottobelden@yahoo.com (or leave a comment) if you would like to know more about either the CAD model that I made, the Interbike show or if you are interested in the e-Moto Monterey bike. I'd be happy to give you more information, or direct you to folks that can!

Don't forget to check out THIS POST to see a rear dropout that I designed and some info on a bamboo bike!
